| Wheel Size | Bolt holes | P.C.D(mm) | C.B.D(mm) | Offset(mm) | Disk Thick | Rec.Type | ||
|---|---|---|---|---|---|---|---|---|
| Holes No. | Hole Dia | Hole Type | ||||||
| 17.5X6.00 | 6/8/10 | 32/26 | SR22/1x45° | 222.25/275 | 164/221 | 130/134 | 10/12 | 205/75R17.5 |
| 19.5X7.5 | 6/8/10 | 32/26 | SR22/1x45° | 222.25/275 | 164/221 | 152 | 12 | 245/70R19.5 |

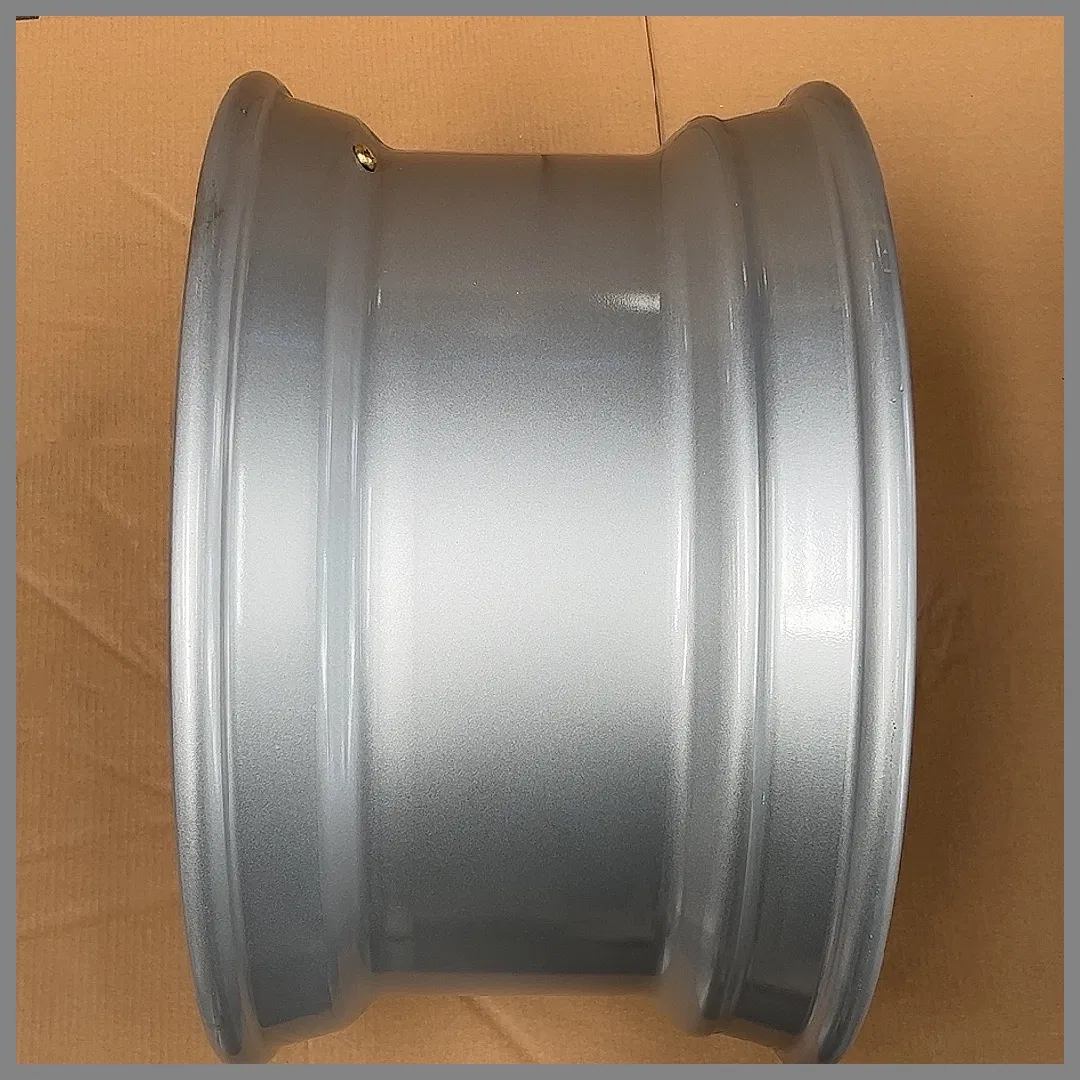

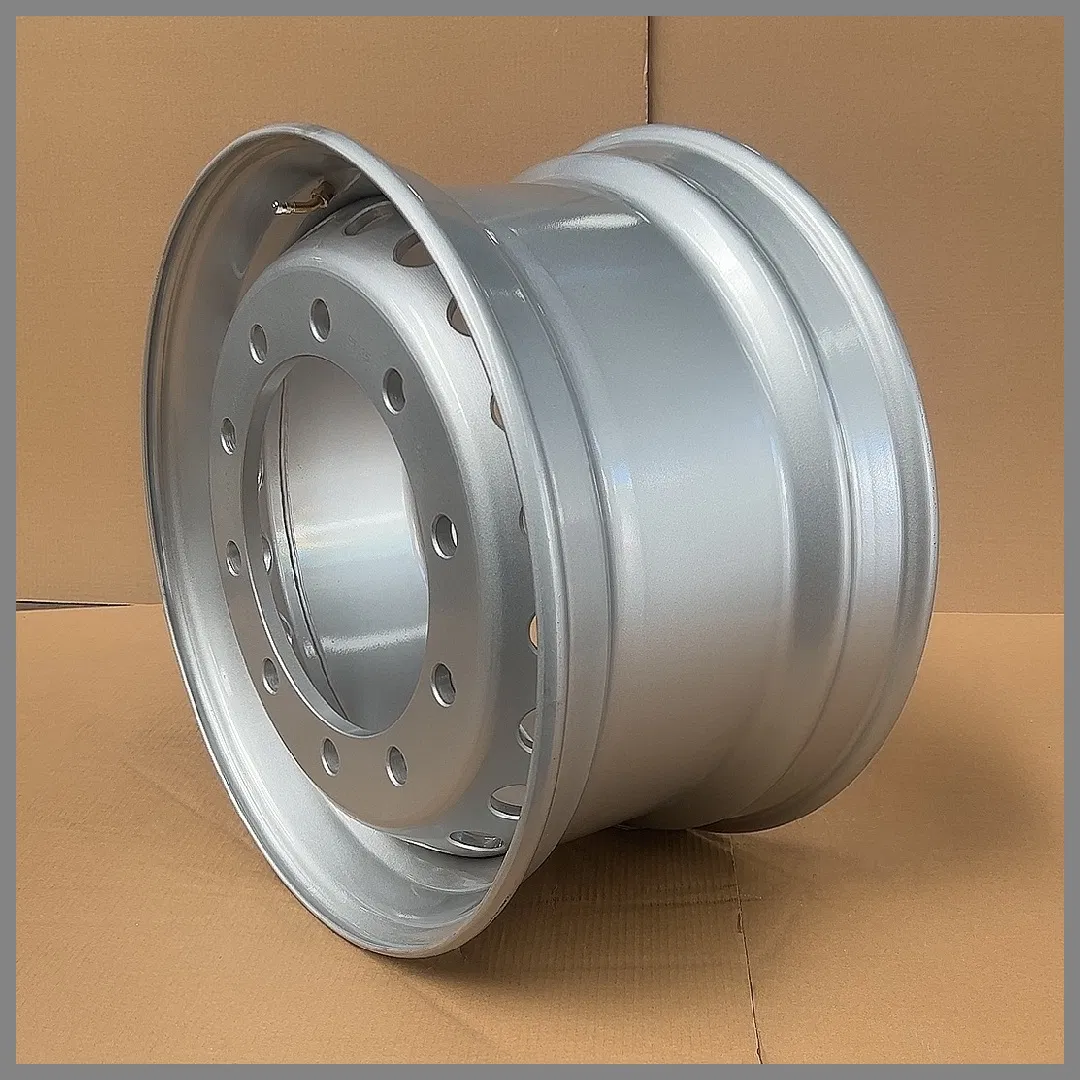

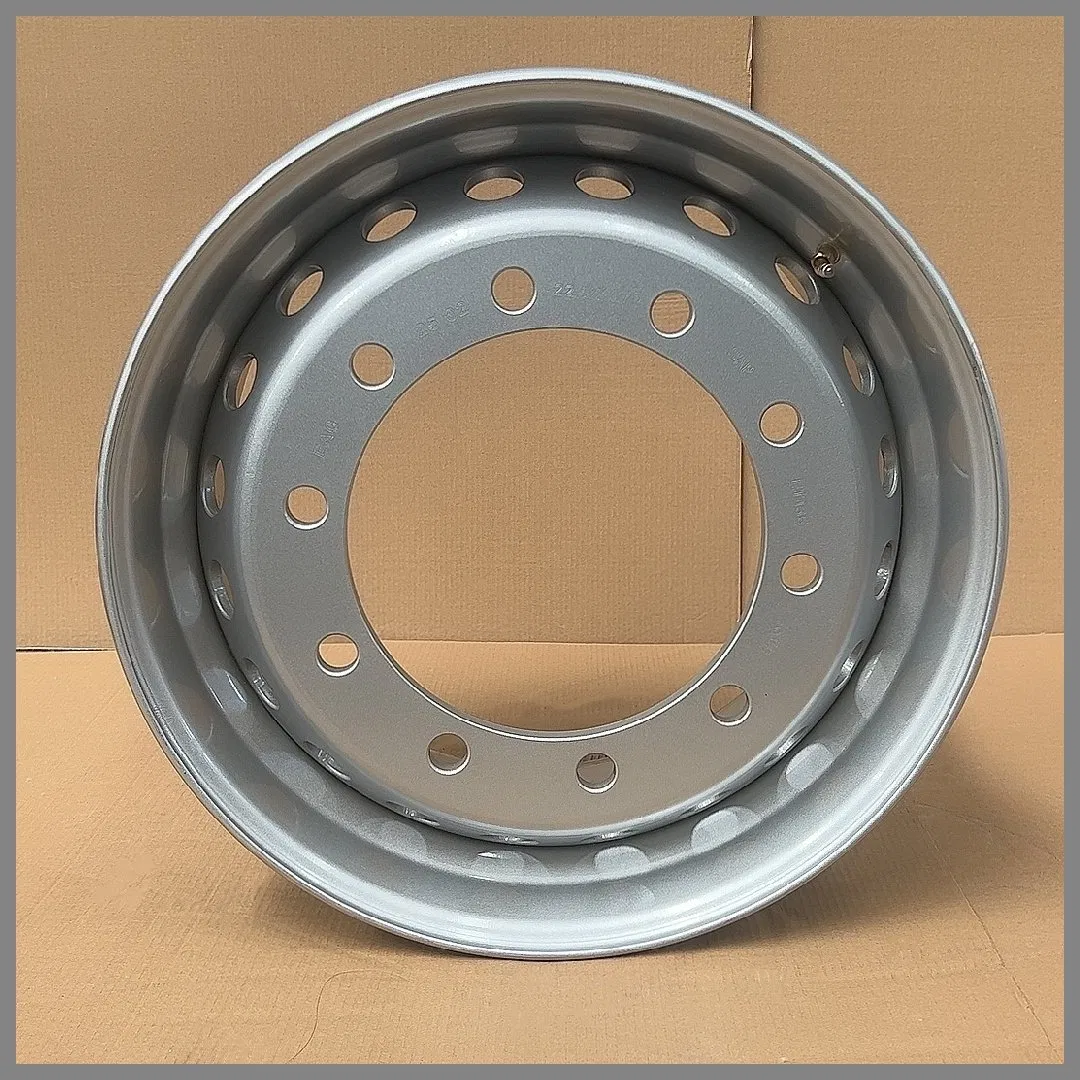

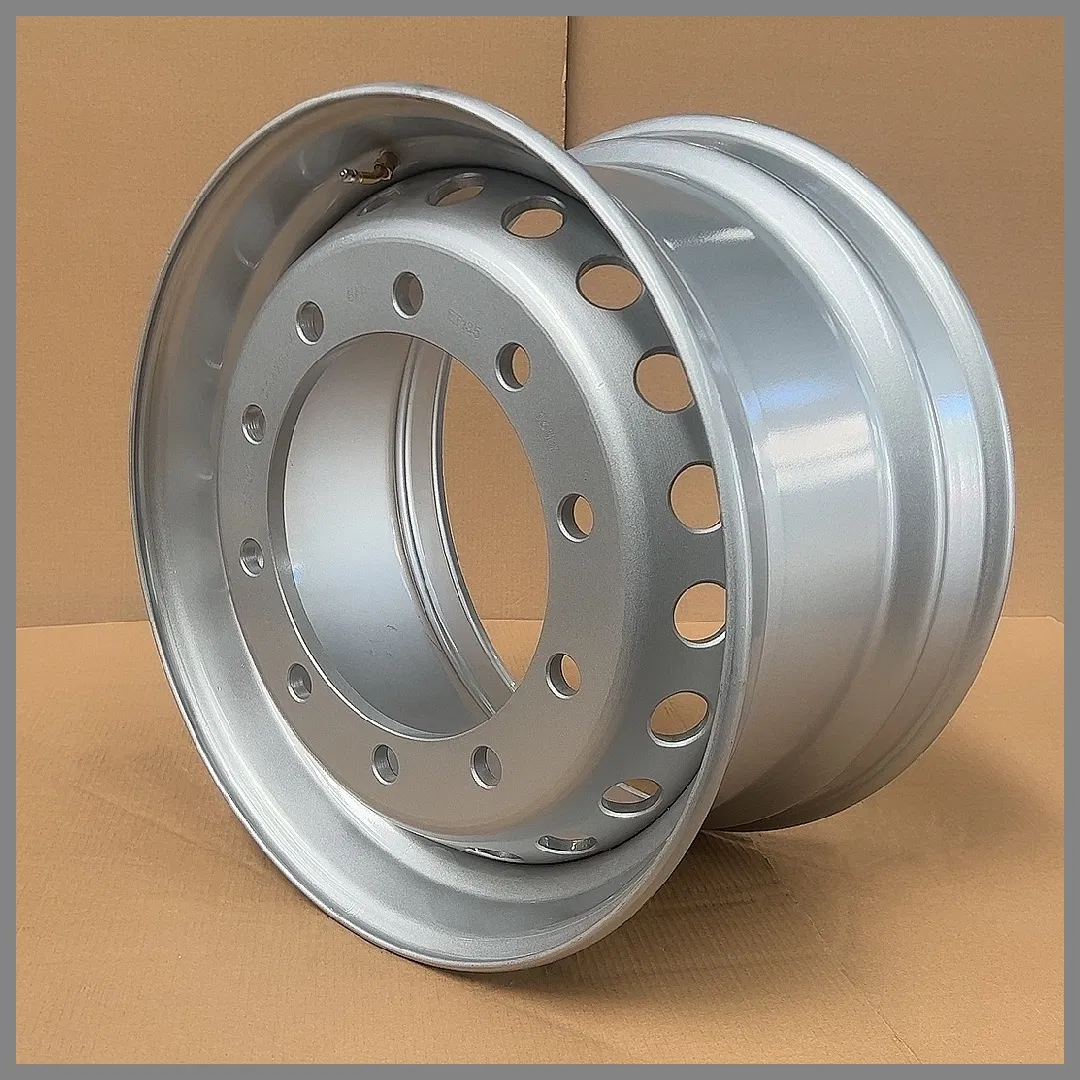

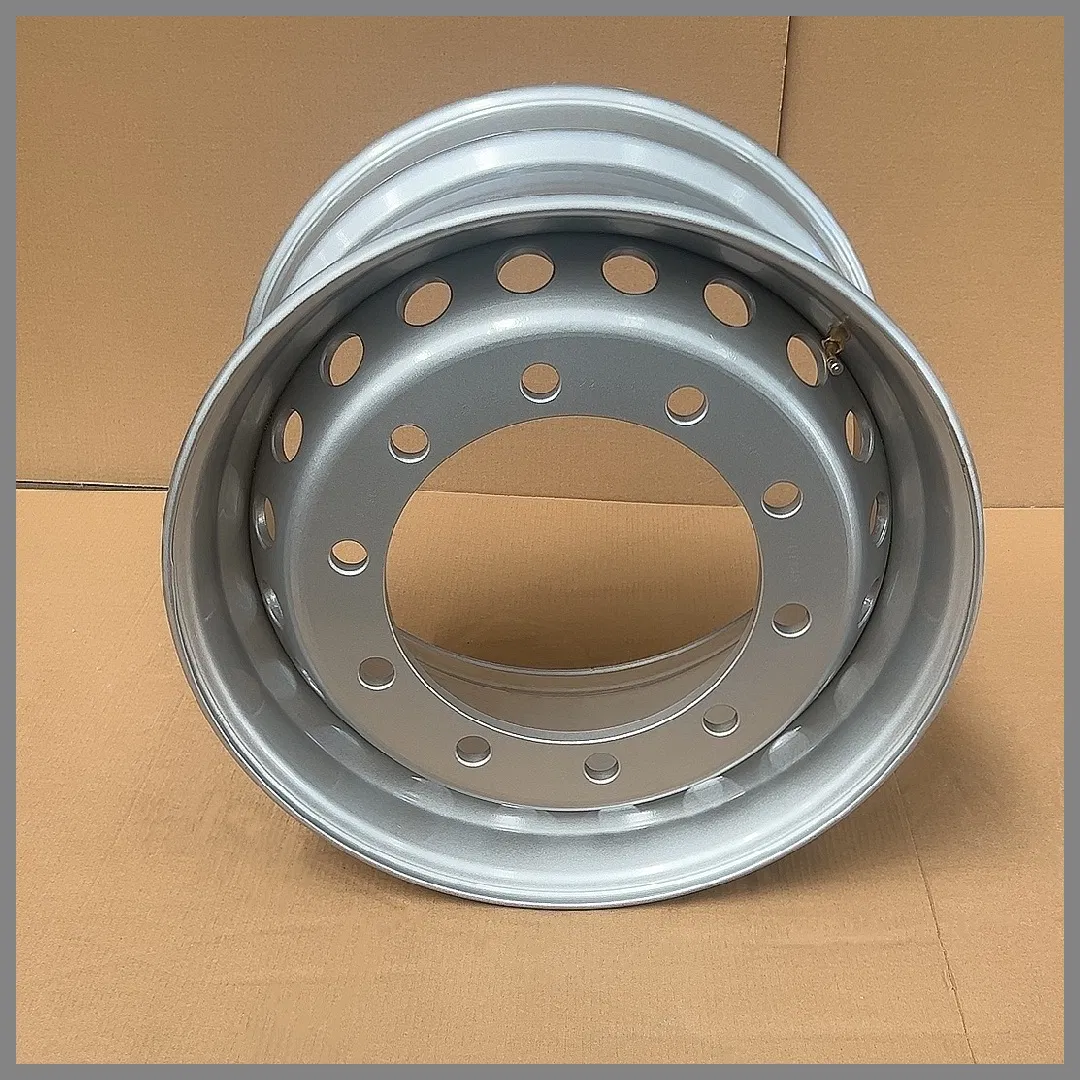

| 22.5X11.75 | 10 | 26 | 1x45° | 335 | 281 | 0/120/135 | 14/16 | 385/65R22.5 |
Tubeless Series: 17.5", 19.5", 22.5", 24.5" (e.g., 22.5x8.25, 22.5x9.00, 22.5x11.75)
Tube Series: 20" (7.50-20, 8.50-20), 24" (8.50-24)

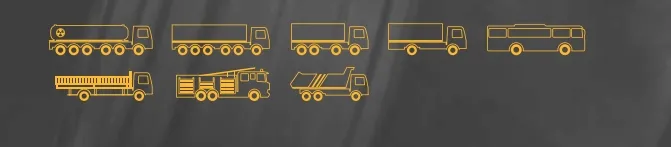

Application Scenarios: Heavy loads for Sinotruk and other OEMs.
We have passed IATF16949, INMETRO, TUV, SMITHERS, SGS, and DOT certifications. This ensures total process control of wheel development, production management, and quality assurance.
Rated as Excellent Supplier and Strategic Cooperative Supplier for several years.

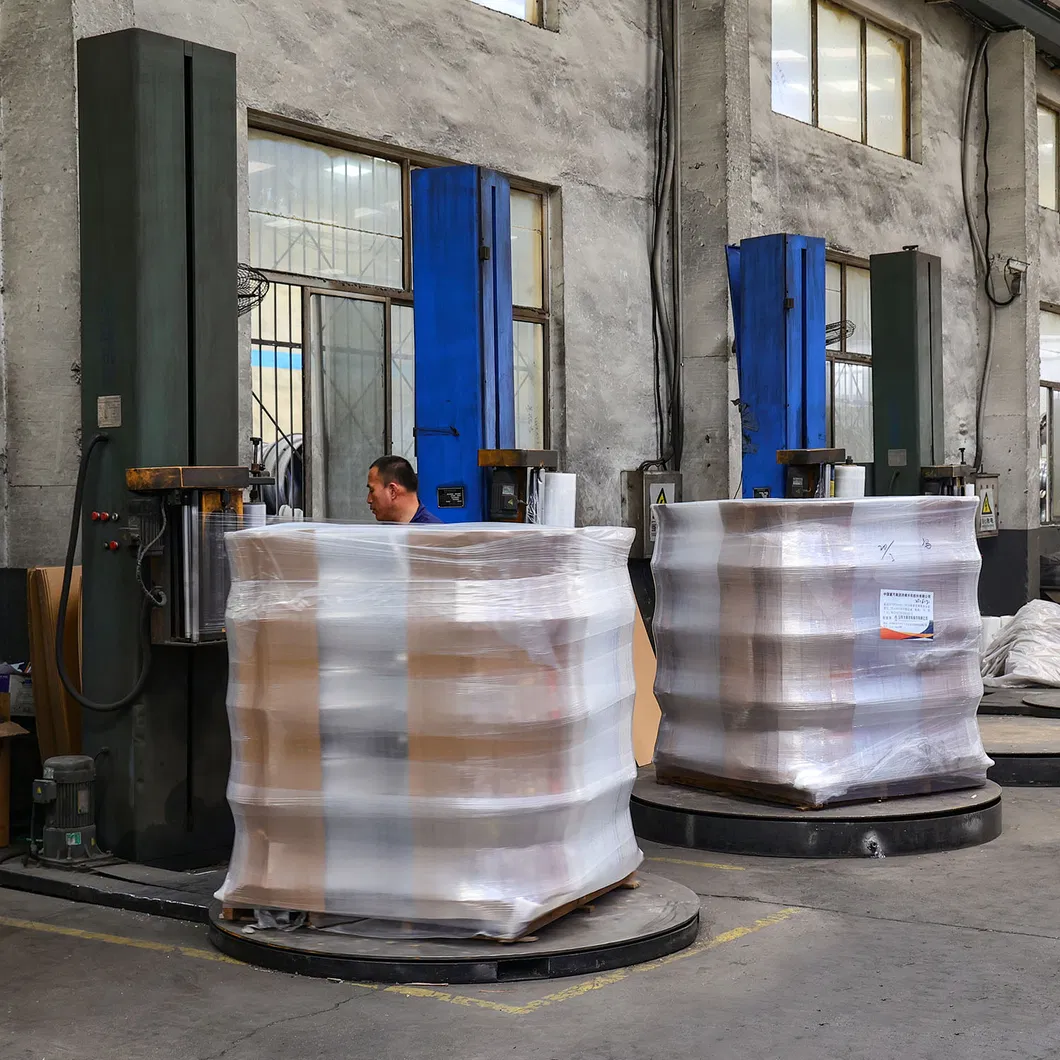

Standard Packing: 1.1m x 1.1m wooden fumigation-free pallet packing.
Logistics: Loading and transportation to port after completion, then delivered to the customer's location with safety guarantee.

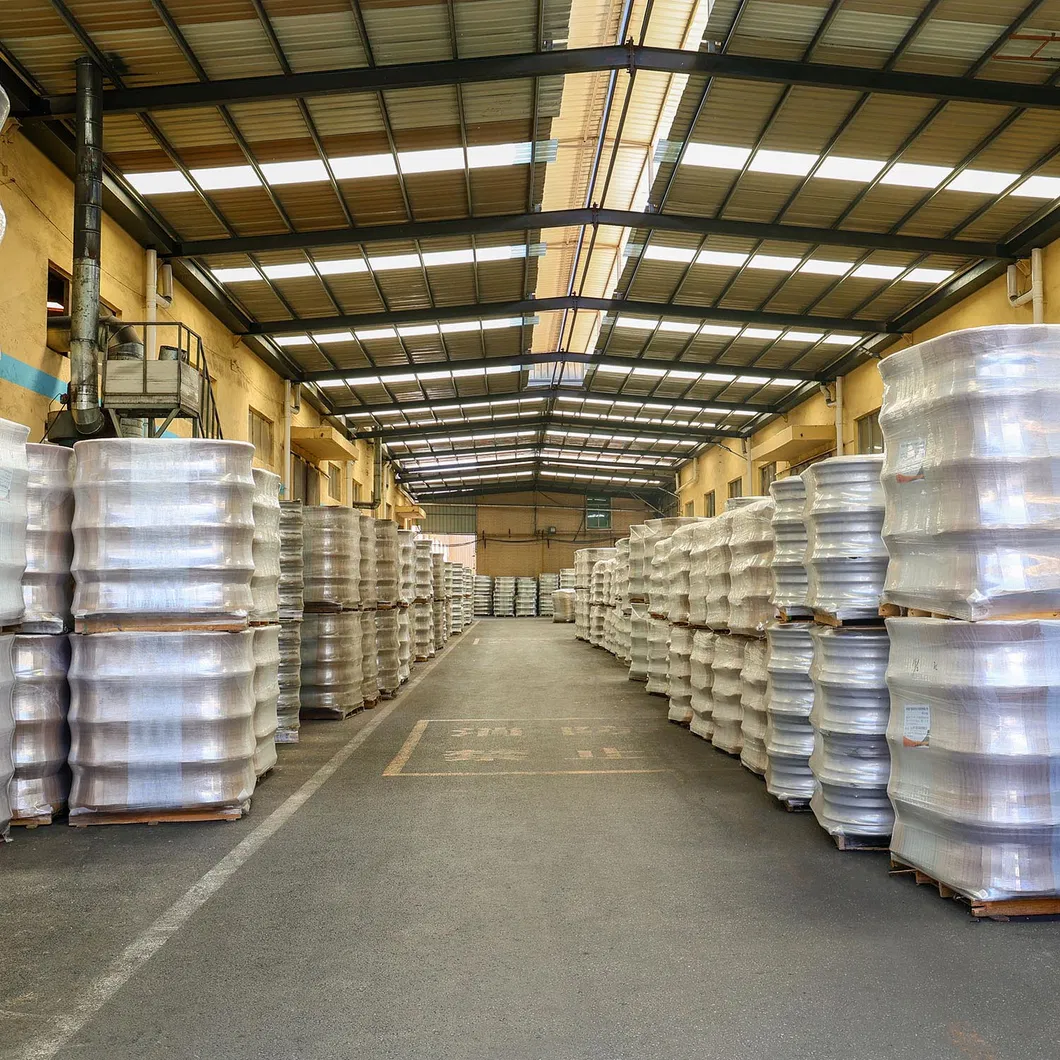

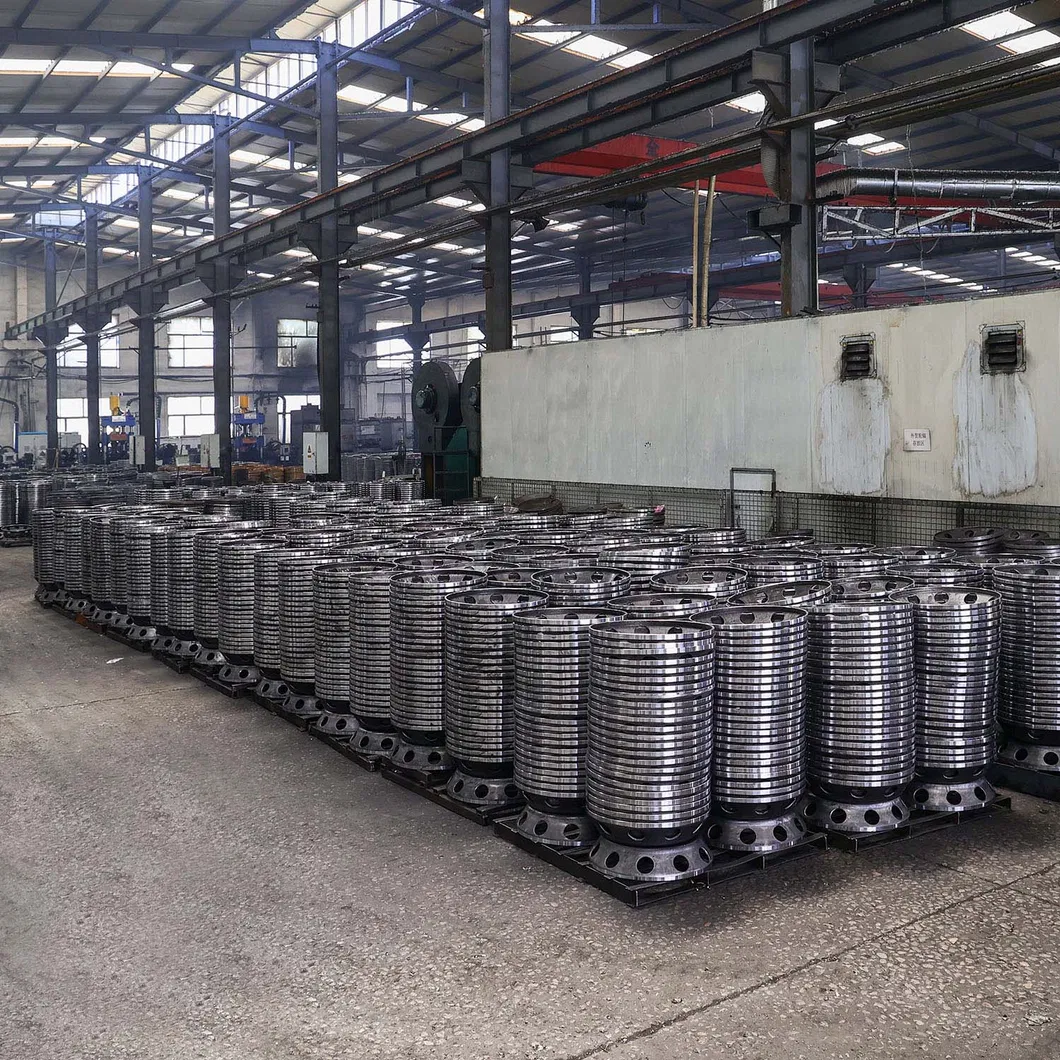

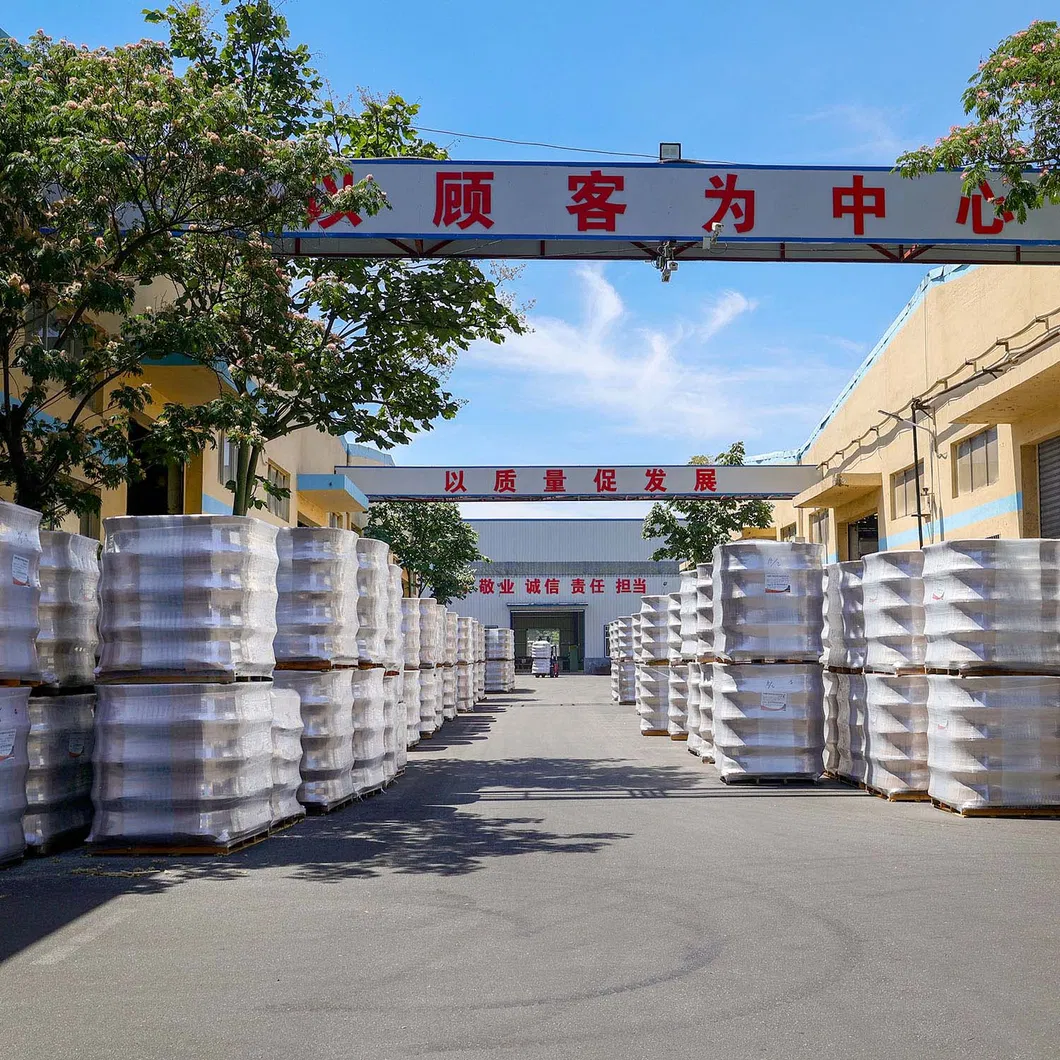

Stock Gallery:

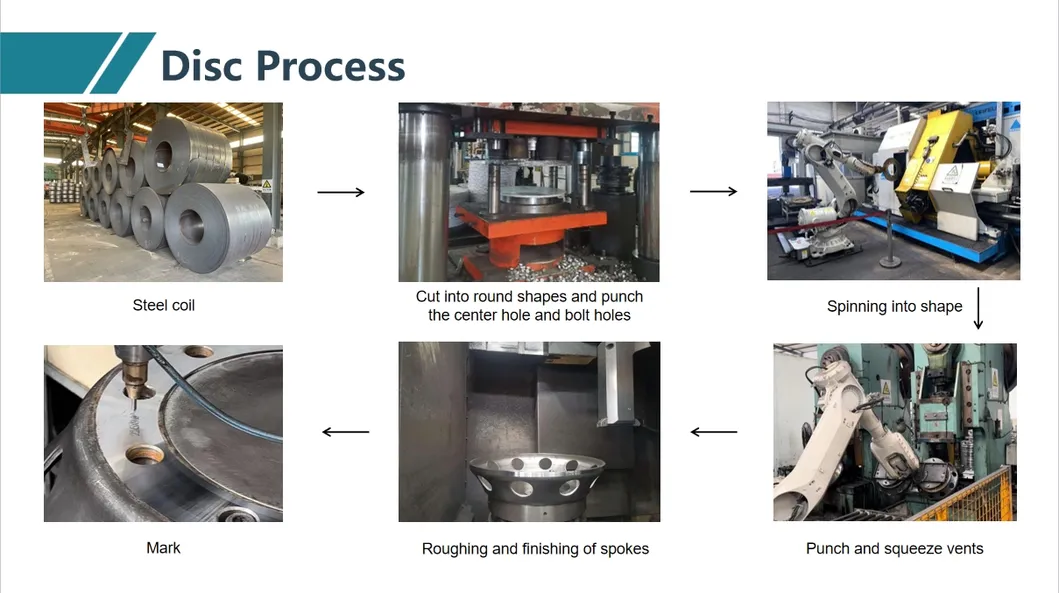

The disc section is formed using fully automated high-tonnage stamping lines, delivering superior structural strength.

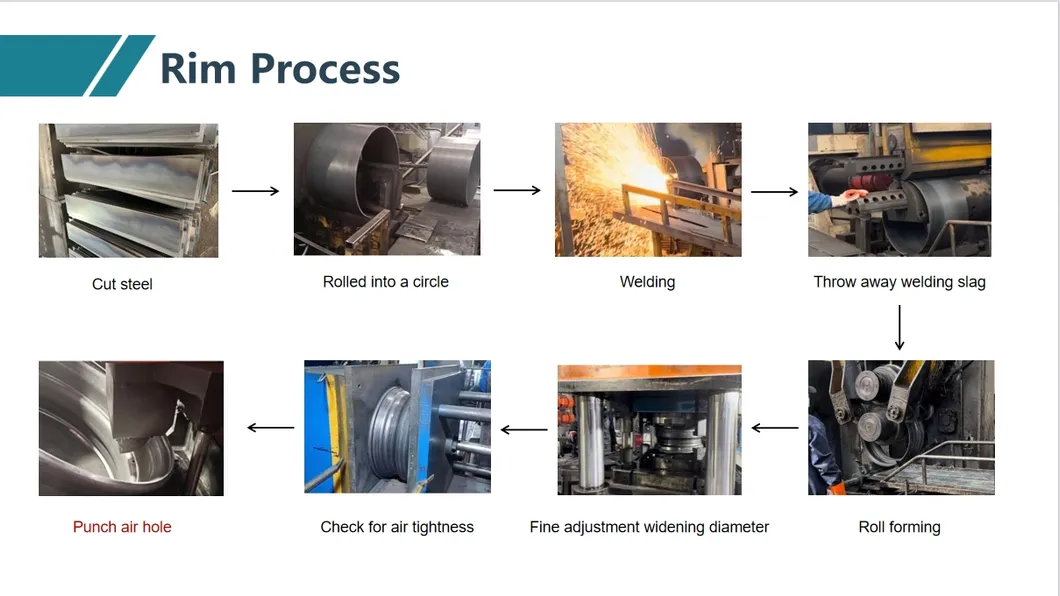

Utilizing advanced flow-forming and roll-forming technology for uniform thickness and high roundness.

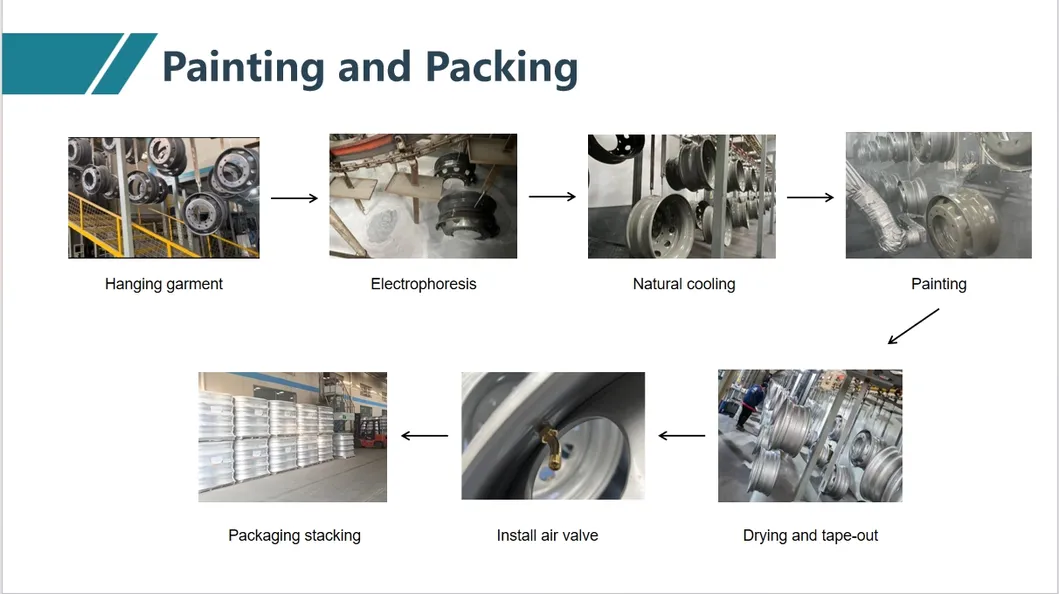

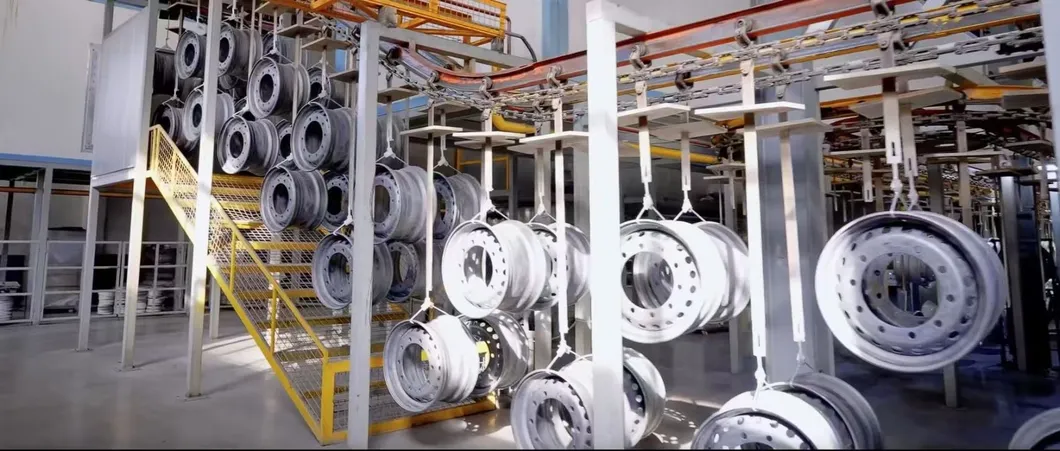

Fully enclosed coating line for electro-coating (e-coat) and powder spraying, ensuring maximum corrosion resistance.
