Model NO.6.50F-10 5.00S-12 23*9-10 7.00-12 21*8-9 6.00E-09
MaterialQ355/S355jr/ASTM Grade50
TypeRim
Drive Wheel4WD
Wheel Hub Diameter8-63 Inch
FinishingFlash Welding
CertificationISO, VIA, CE, TUV, ISO/Ts16949/DOT
Load Capacity2-10 Tons Per Rim
Production Capacity2000PCS/Day
OriginChina
Product Features & Description

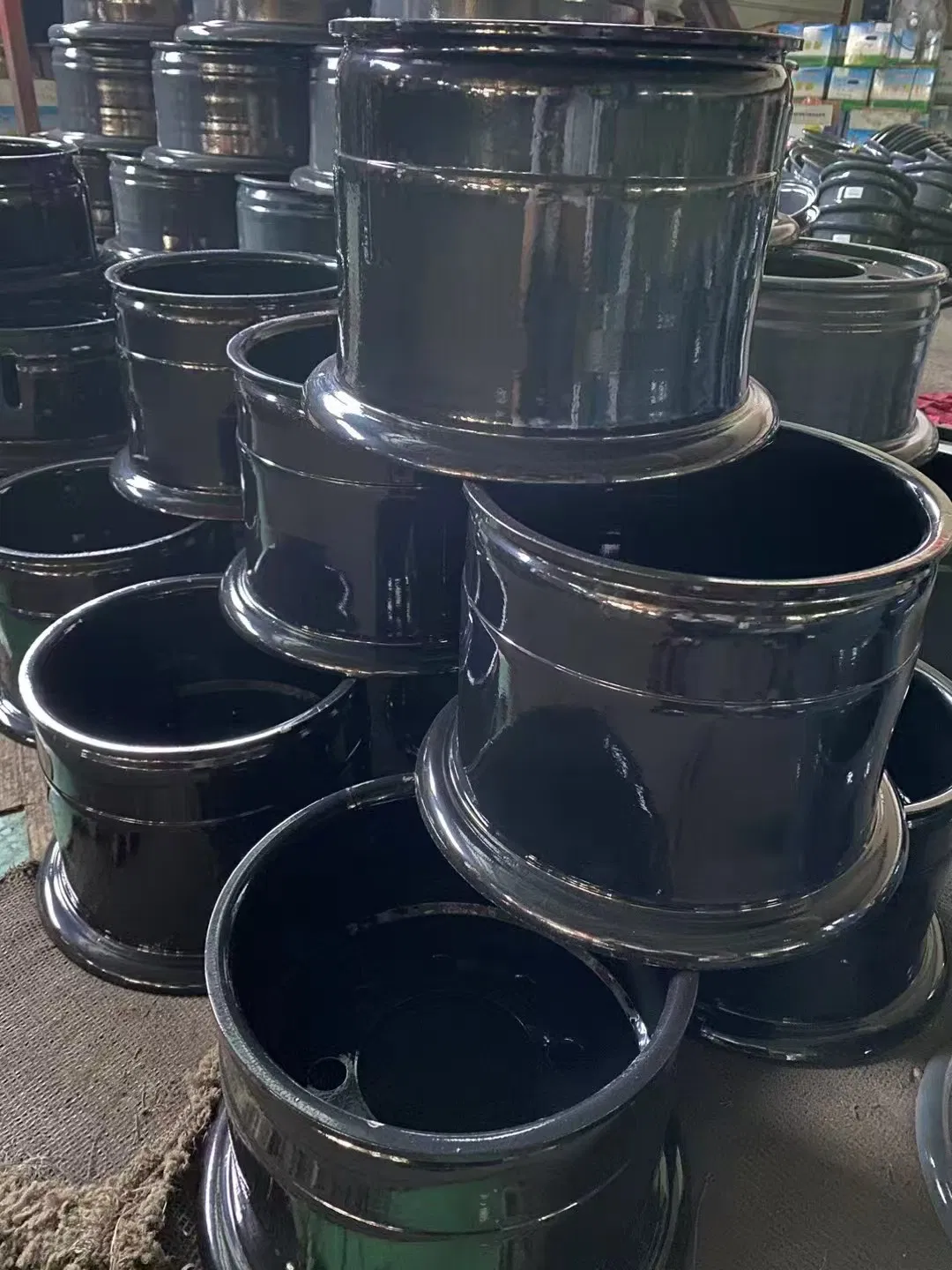

Multi-Piece Rims (Lock Ring Type): Ideal for wheel applications typically for tyres 15" diameter and above. Available in 3-piece or 4-piece locking configurations.

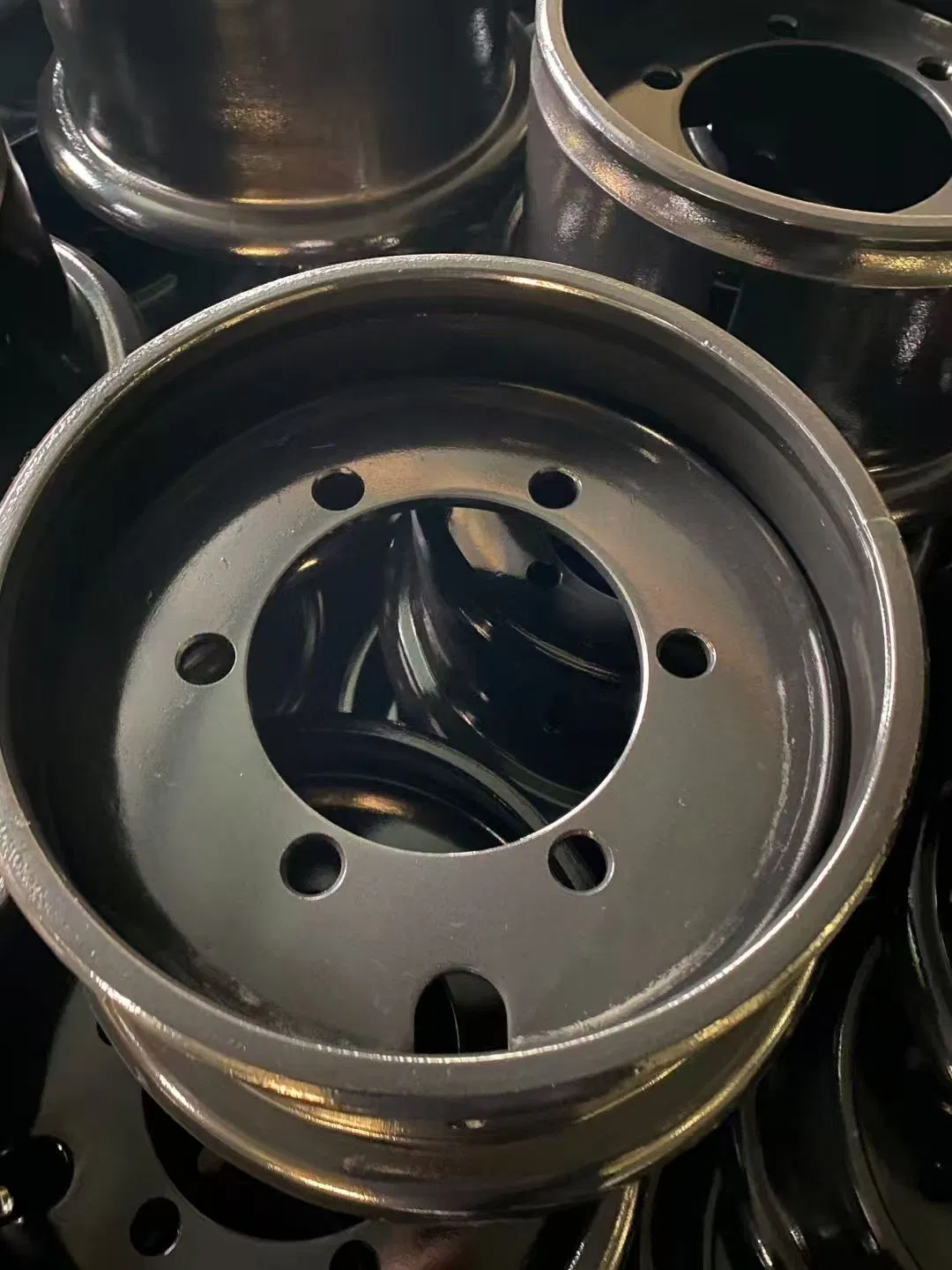

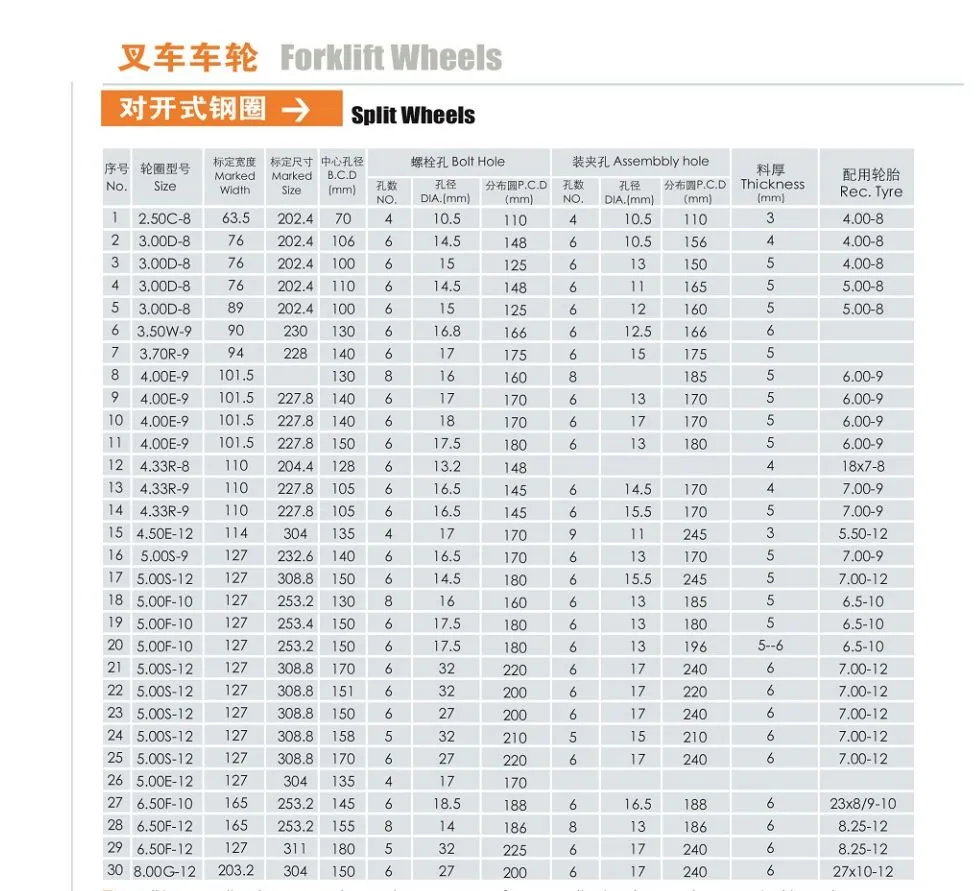

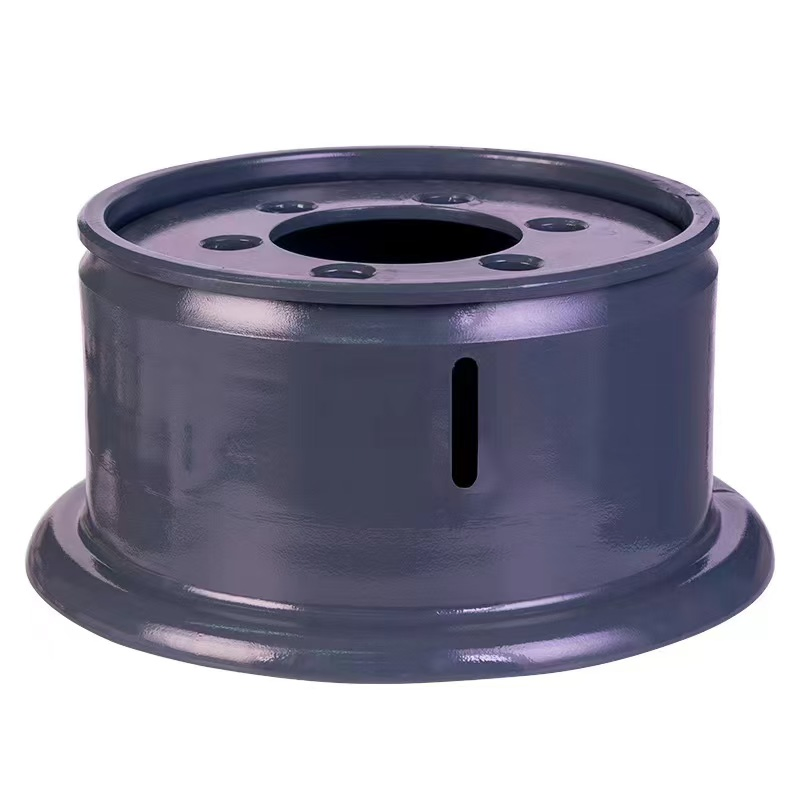

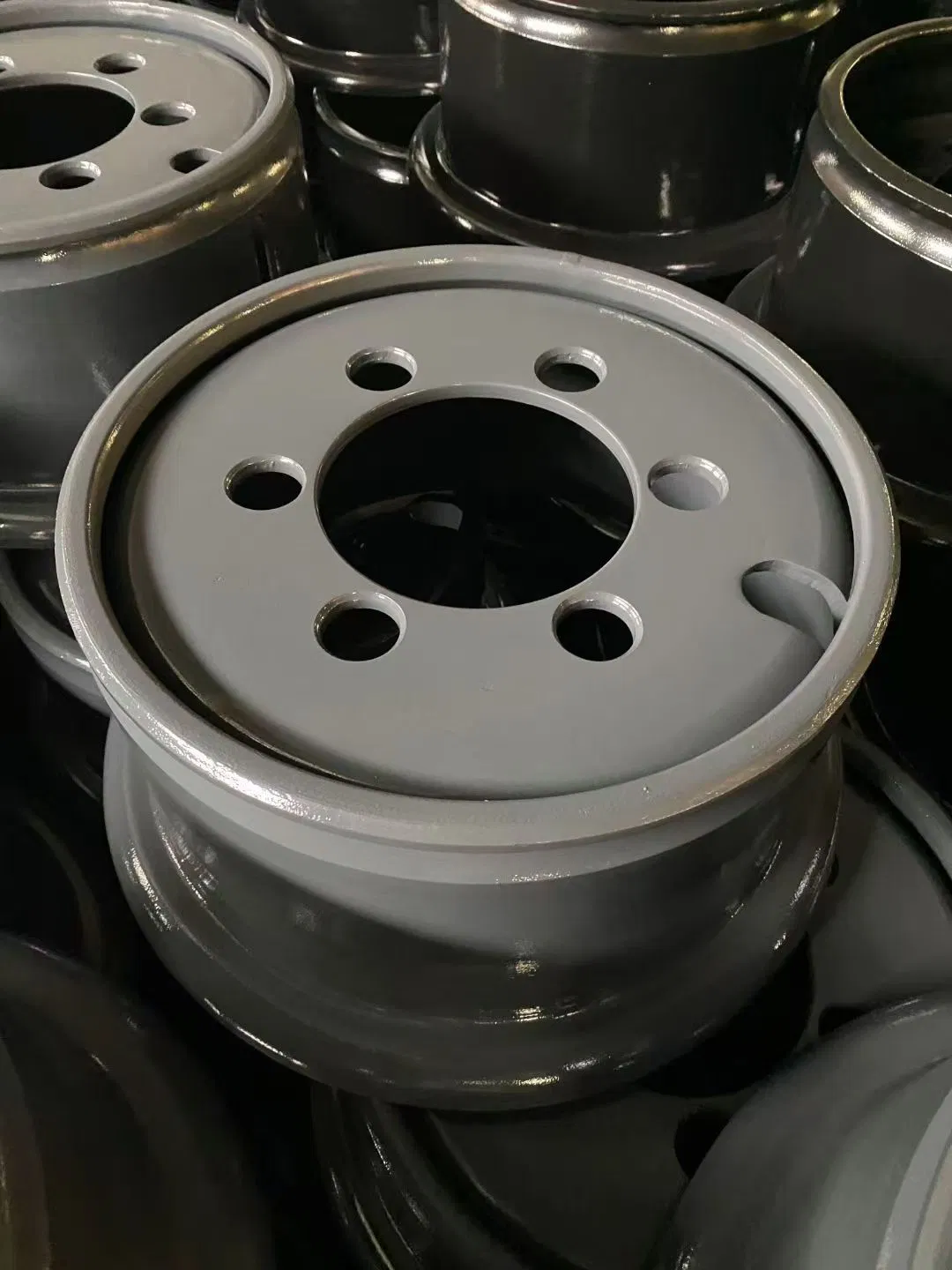

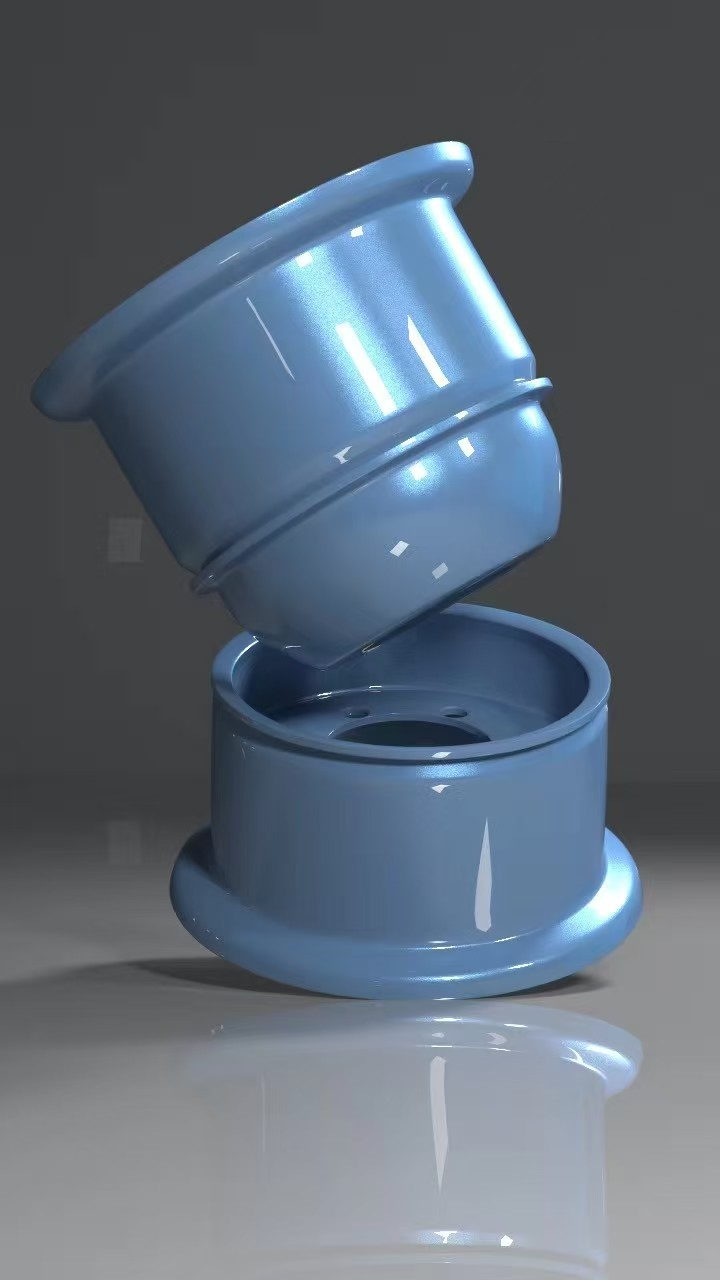

Split Rims: Designed for pneumatic tyres typically up to 12" diameter. Economical to maintain and easy to replace.
Press-on Wheels: Manufactured for cushion tyre forklift applications, built to precise specifications.
Dual Wheel Kits: Custom designed offsets and configurations manufactured for durability and longest life.
High-Grade Construction: Made from high-strength Q235 steel or Ductile iron with anti-corrosion galvanized surfaces.
Precision Engineering: Balanced structure reduces tire wear by up to 30% and resists impact deformation in harsh environments.

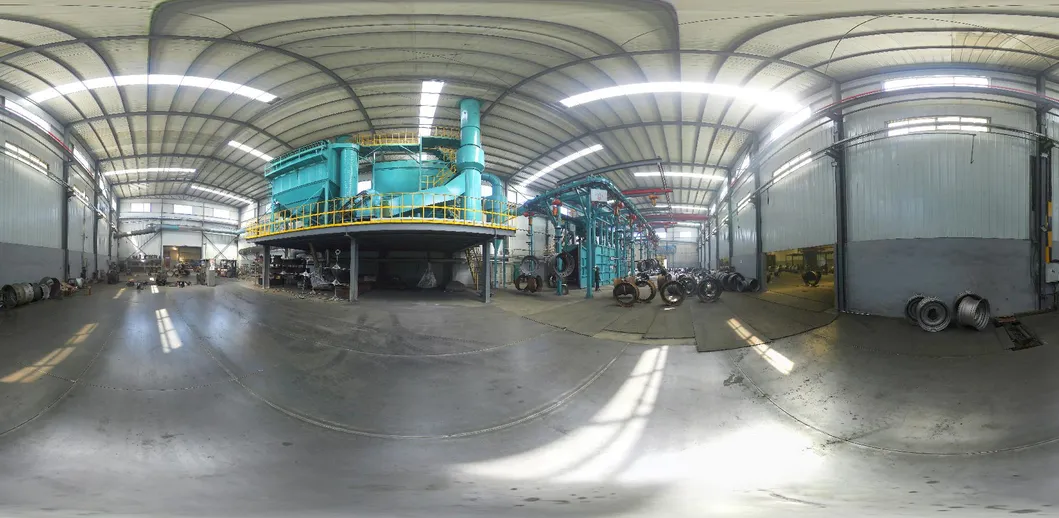

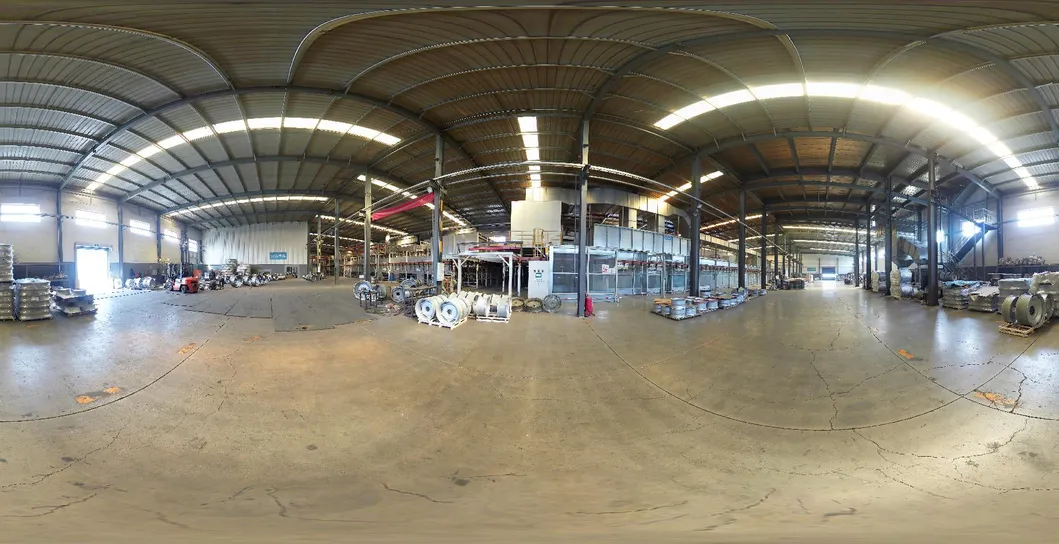

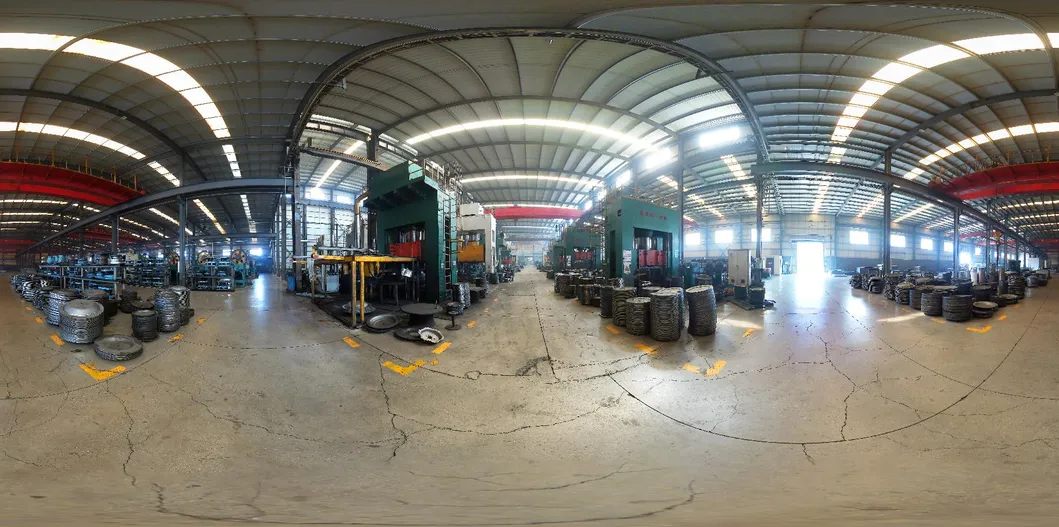

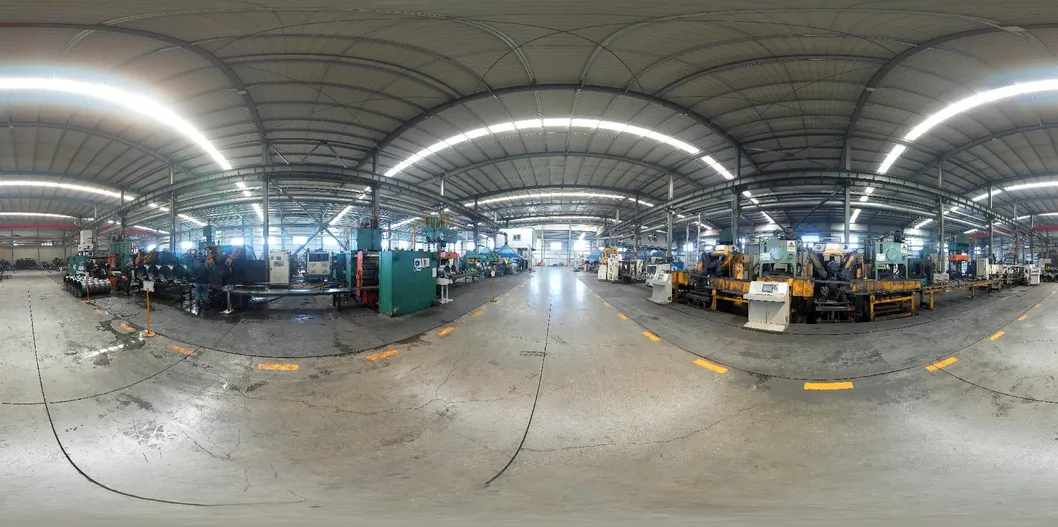

Advanced Production Process
1. Automated Pre-Heat billet System
2. Automatic Forging (6,000 - 10,000 ton)
3. Automatic Flow Forming Machine
4. Automatic Heat Treatment
5. Automatic Machining Equipment
6. Automatic Painting & Lettering

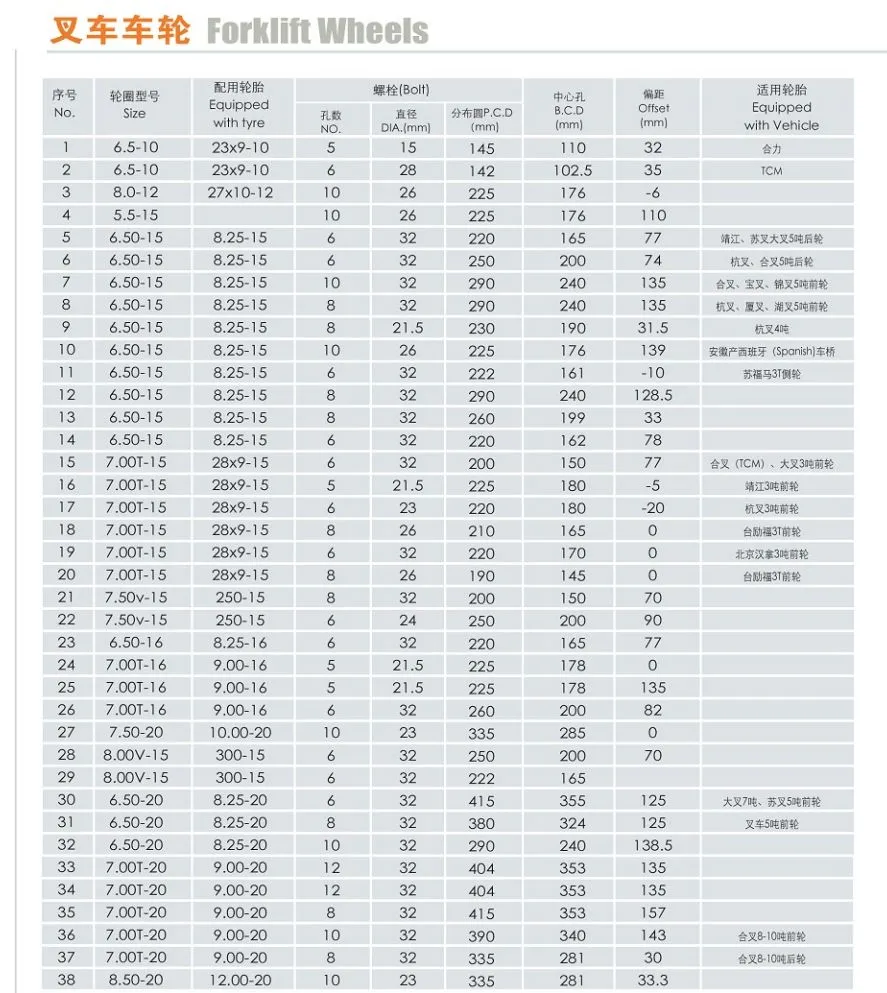

Technical Specifications Table
WHEEL SIZE
TT/TL
RIM CODE
MATCHED TIRE
SUITABLE MACHINE
DW20X26
TT
DW
23.1-26
ROAD ROLLER
8.5-1.3-25
TT/TL
TB
13.00-25
AIRPLANE TRACTOR/TIPPER
10.00W-24
TT
FB
14.00-24
LOADER/MINE VEHICLE
8.5-24
TT
FB
12.00-24
CONTAINER HANGING VEHICLE
25.00/3.5-29
TL
TB
29.5-29
SEAPORT TRANSPORT EQUIPMENT
19.50/2.5-25
TT/TL
TB
23.5-25
LOADER/ROAD ROLLER
17.00/2.5-25
TT/TL
TB
20.5-25
MIXING MACHINE
13-20
TT/TL
TB
16/70-20
ALL TERRAIN VEHICLE
36.00/5.0-63
TL
TB
53/80R63
MINING VEHICLE
8.0-15
TT
FB
300-15
LOADER
Frequently Asked Questions
Q: What materials are used for your forklift wheel rims?A: Our rims are manufactured using high-grade Q355, S355jr, and Q235 steel to ensure maximum load capacity and impact resistance.
Q: Can you manufacture custom rim sizes based on technical drawings?A: Yes, we provide OEM/ODM services and can produce custom offsets and configurations based on your CAD specifications.
Q: What certifications do these forklift rims carry?A: All products are certified by ISO 9001, CE, TUV, and DOT, ensuring they meet international safety and quality standards.
Q: Are your rims compatible with both pneumatic and solid tires?A: Yes, our precision-engineered split and multi-piece rims are compatible with standard pneumatic, resilient, and cushion tires.
Q: What is the typical lead time for production?A: Standard production lead time is approximately 15 days, with expedited options available for emergency orders.
Q: How do you protect the rims from rust in humid environments?A: We use a high-quality anti-corrosion galvanized surface finish and advanced painting equipment to ensure a lifespan of over 10 years.
